Printing

System

Dye sublimation re-transfer

Printing density 300dpi x 300dpi

Overview

Double sided printing

Full color 256 gradations - Dye-sublimation printing

Text, numeric, logo's 1D, 2D barcode

Card

Personalization Speed

YMCKK Double sided printing : 54 sec single sided

Printer overview

Card hopper

100 card

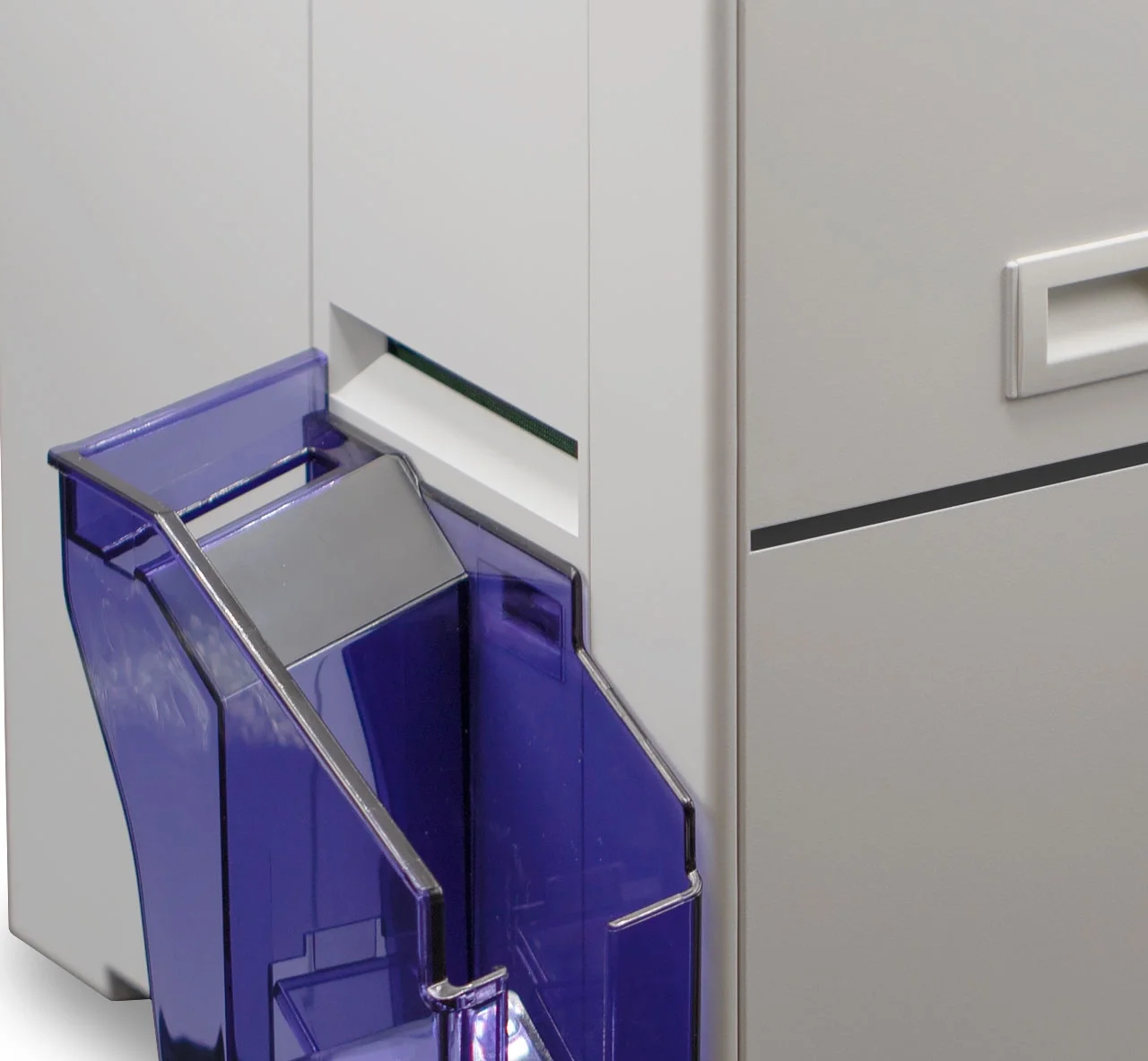

Card output hopper

100 card

Optional card hopper

250 card

Card thickness

0.25mm ~ 1.00mm Size: 54.0mm * 85.6mm

Dimensions, Weight, & Operating Environment

Dimensions

343mm * 335mm * 322mm (W*H*D) (without card stacker)

Mass approx.

Single side 13.5kg Dual side 13.7kg

Temperature

15°C to 30°C Humidity: 35% to 70% (YMCK ink, No condensation)

Safety Standards

UL,CE,FCC,KC,CCC,CSA,BIS

Safety Standards

Microsoft® Windows®11 32bit/64bit

Microsoft® Windows®10 32bit/64bit

Microsoft® Windows®8 (including 8.1) 32bit/64bit

Microsoft® Windows®7 (SP1) 32bit/64bit

Microsoft® Windows® Server 2012 64Bit

Microsoft® Windows® Server 2008 R2 (SP1) 64Bit

Interface USB2.0 (Hi-speed / Full Speed)

Ethernet (100BASE-TX / 10BASE-T)

Electronic locking system for input hopper, color ribbon, and INTM Film

Encoding Options

Magnetic stripe encoder (K30D only)

Smart card contact/contactless

Included in the Printer

Power cord with power supply

USB / Ethernet cable

Cleaning card

Printer driver CD
